Pico 8 Channel Oscilloscope


Pico 8 Channel Scope

Out of stock

SKU: Pico Octoscope Scope Categories: , Tags: , ,

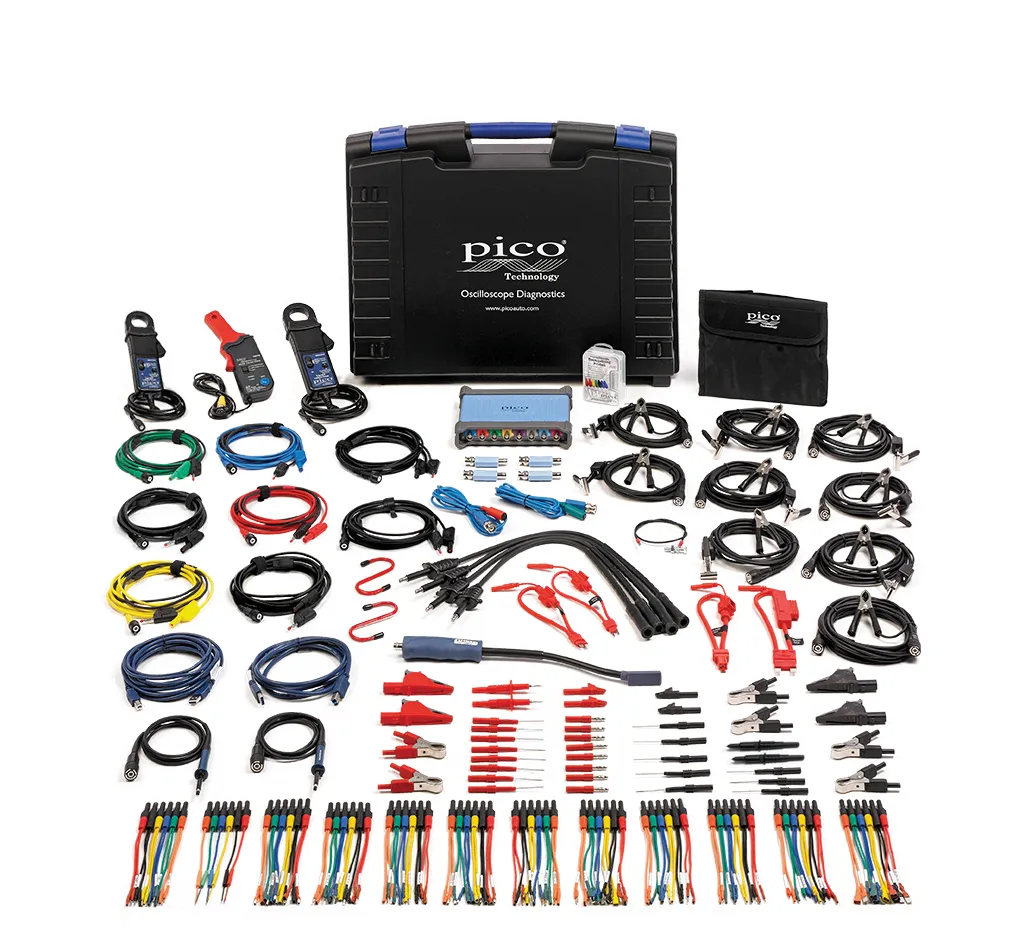

Pico 4823 – New 8 Channel ‘Octoscope’.

The 4823 is the world’s first high-speed, high-resolution, 8-channel automotive oscilloscope, and is fast enough for CAN, CAN FD, and FlexRay including serial data decoding. It is ready-configured for automotive probes and includes more than 150 Guided tests, plus access to thousands of comparisons in the Pico waveform library which now supports 8 channels.

Why 8 channels?

The PicoScope 4823 is a low-cost, portable solution for multi-input applications. With 8 high-resolution, high-speed analog channels you have a perfect solution for a range of diagnostic needs such as:

V6/V8 Cam timing (4/6 cams plus crank, and sometimes a WPS), and VVT timing systems.
Trucks, construction and agriculture equipment that typically requires a mix of electrical and hydraulic measurements on multiple valves simultaneously to diagnose problems with system interaction.
Full system diagnosis on components (including power, ground, signals, current)
Diagnosing faults on multiple serial busses (CAN, CAN FD, LIN, FlexRay)
The 256 MS deep memory allows several seconds of capture at the full sampling rate (ideal for long captures of serial data or looking for glitches). Managing all this data calls for some powerful tools, so zoom factors of several million are possible. Other tools such as the waveform buffer, mask limit test, serial decode and hardware acceleration work with the deep memory making the PicoScope 4823 one of the most powerful diagnostic oscilloscopes on the market.

The compact size and USB power makes the PicoScope 4823 ideal for those on the move. For the first time you can carry an 8 channel oscilloscope in your bag!

Fast Sampling.

The PicoScope 4823 can capture high-speed signals that are too fast for many other automotive oscilloscopes. With sampling rates of up to 80 million samples per second, there is nothing that can escape the scrutiny of PicoScope.

CAN and FlexRay are now common on vehicles, and new protocols such as SENT for digital sensors and CAN FD (up to 5x faster than the current CAN standard) now present in some vehicles. The fast sampling rate ensures that the PicoScope 4823 has the speed to handle future needs as vehicle technology changes.
